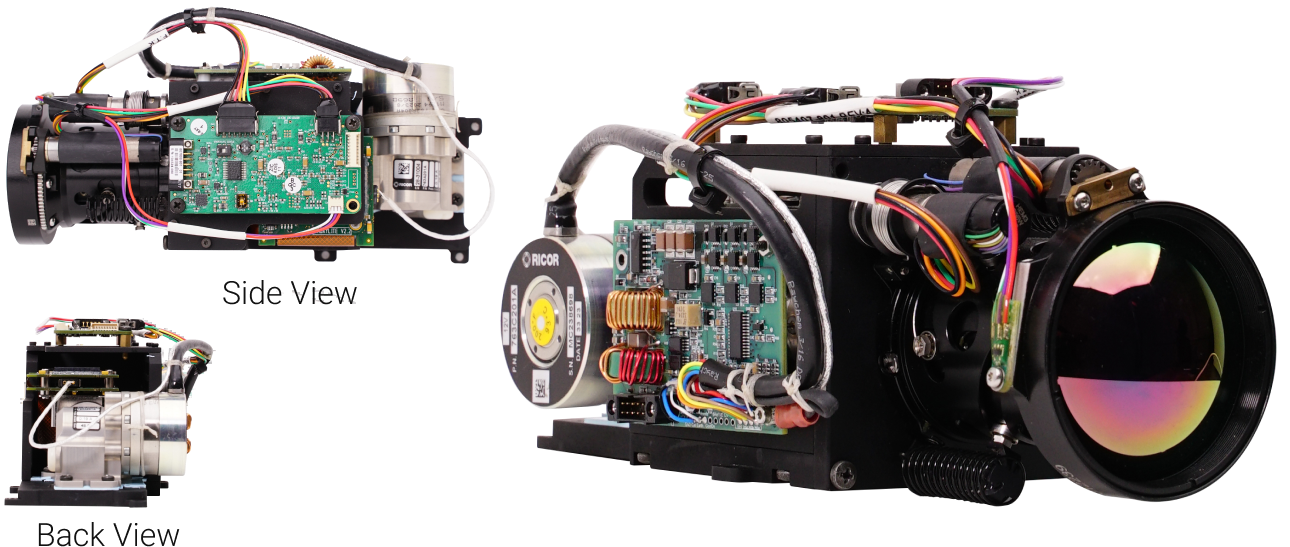

TRIMER™ M6L_UUZ : (640x512 | 15μm)
COOLED MWIR THERMAL IMAGING CORE
CUSTOMIZABLE COTS MODULE WITH BUILT-IN ISP
Trimer™ is a trademark of Digital Core Technologies Pvt Ltd.
BUILT-IN IMAGE PROCESSING
Integrated ISP with advanced correction and enhancement algorithms for high-quality thermal image output.
SOFTWARE & API SUPPORT
Windows/Linux based demo application (ThermView) with APIs for evaluation, configuration and seamless system integration.
CUSTOM INTEGRATION READY
Flexible interface options with adapter boards and customized video output interfaces for surveillance platforms.
LONG-RANGE THERMAL VISION
Cooled MWIR imaging technology enables enhanced detection capability for long-range surveillance applications.
SPECIFICATIONS
| DETECTOR | Lynred LEO MW | |
| PIXEL PITCH | 15μm | |
| RESOLUTION | 640 x 512 | |
| NETD | <25mK | |
| FPA OPERATING TEMP | 90K to 100K (-170°C) (for Leo) | |
| SPECTRAL BAND | 3.7 to 4.8μm (MWIR) | |
| F# | f/5.5 | |
| FRAME RATE | 25 / 50 or 30 / 60 fps | |
| OPERATING TEMP | -30°C to +60°C | |
| DESIGN COMPLIANCE | Compliant to MIL standards | |
| OPTICS | Customizable | |
| POWER | 12V DC, 16W Max / 9W Typical |
APPLICATIONS
| Long-range surveillance and reconnaissance | |
| Aircraft detection and tracking | |
| Missile plume detection and tracking | |
| Border and coastal security monitoring, Maritime surveillance | |
| Critical infrastructure protection | |
| Enhanced vision in darkness, smoke, fog, haze, and other degraded visual environments |
OTHER VERSIONS
| Name | Pixel Pitch | Type | Resolution | |
|---|---|---|---|---|
| L4A_ZDN | 12μm | uncooled | 1280 X 1024 | |
| L6P_ZDM | 17μm | uncooled | 640 X 480 | |
| L6D_ZDM | 12μm | uncooled | 640 X 480 | |
| L3P_ZDM | 17μm | uncooled | 320 X 240 | |
| L3T_LUB | 12μm | uncooled | 320 X 240 |
