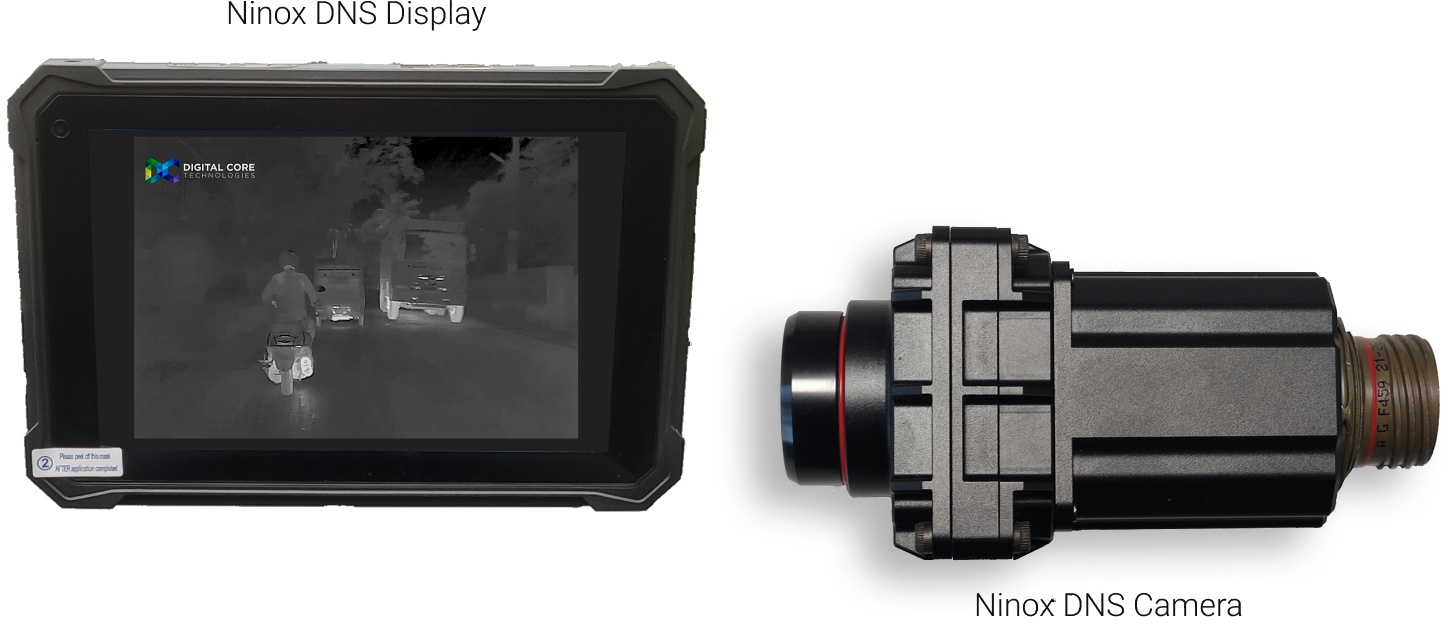

NINOX-DNS
RUGGED LOW-POWER DRIVER NIGHT SIGHT
COMPACT THERMAL VISION
for 24/7 TACTICAL MOBILITY AND SURVEILLANCE OPERATIONS
RUGGED THERMAL DESIGN
Low-power LWIR thermal imaging system engineered for driver vision and harsh operating environments.
SOFTWARE INTEGRATION: THERMVIEW
Windows/Linux based demo application (ThermView) available for demonstration, validation & API reference.
Built-In ISP
Integrated image processing with Bad-pixel correction, NUC, Tone-mapping,DDE, CLAHE etc.
WIDE OPERATING RANGE
Reliable performance across extended temperature conditions from -40°C to +50°C.
SPECIFICATIONS
| Model Name | L6P_ZDM_NX | |

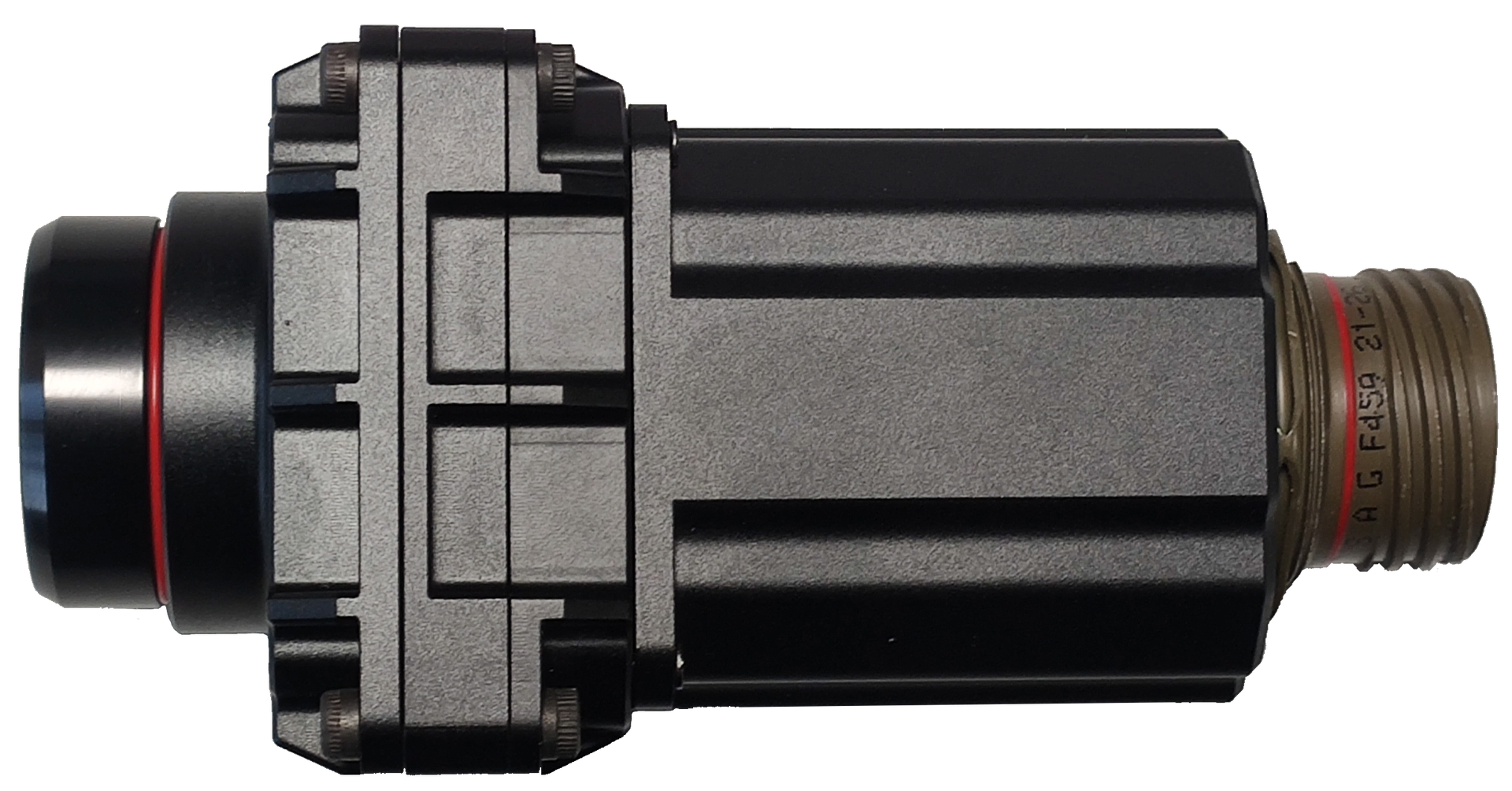

| Mech. Dimensions | 57mm x 57mm x 125mm | |
| Lens Mount | M25 with 14mm lens |
(IMAGE SENSOR)
| Vendor/Model | LYNRED / PICO640 | |
| Spectral Response | LWIR (8 - 14 μm) | |
| Max Resolution | 640 X 480p | |
| Pixel Pitch | 17 μm | |
| Frame Rate | 25 fps / 50 fps |
(INTERFACE)
| Output Video Format | USB - UVC | |
| Output Resolution | 640 X 480p | |
| Time to Image | <3 seconds from Power ON | |
| Control interface | USB | |
| Camera Mounting | Magnetic (no drilling/ screws needed) |
(POWER)
| Input Voltage | 5.0V | |
| Power Dissipation | <1.6 W (Camera) |

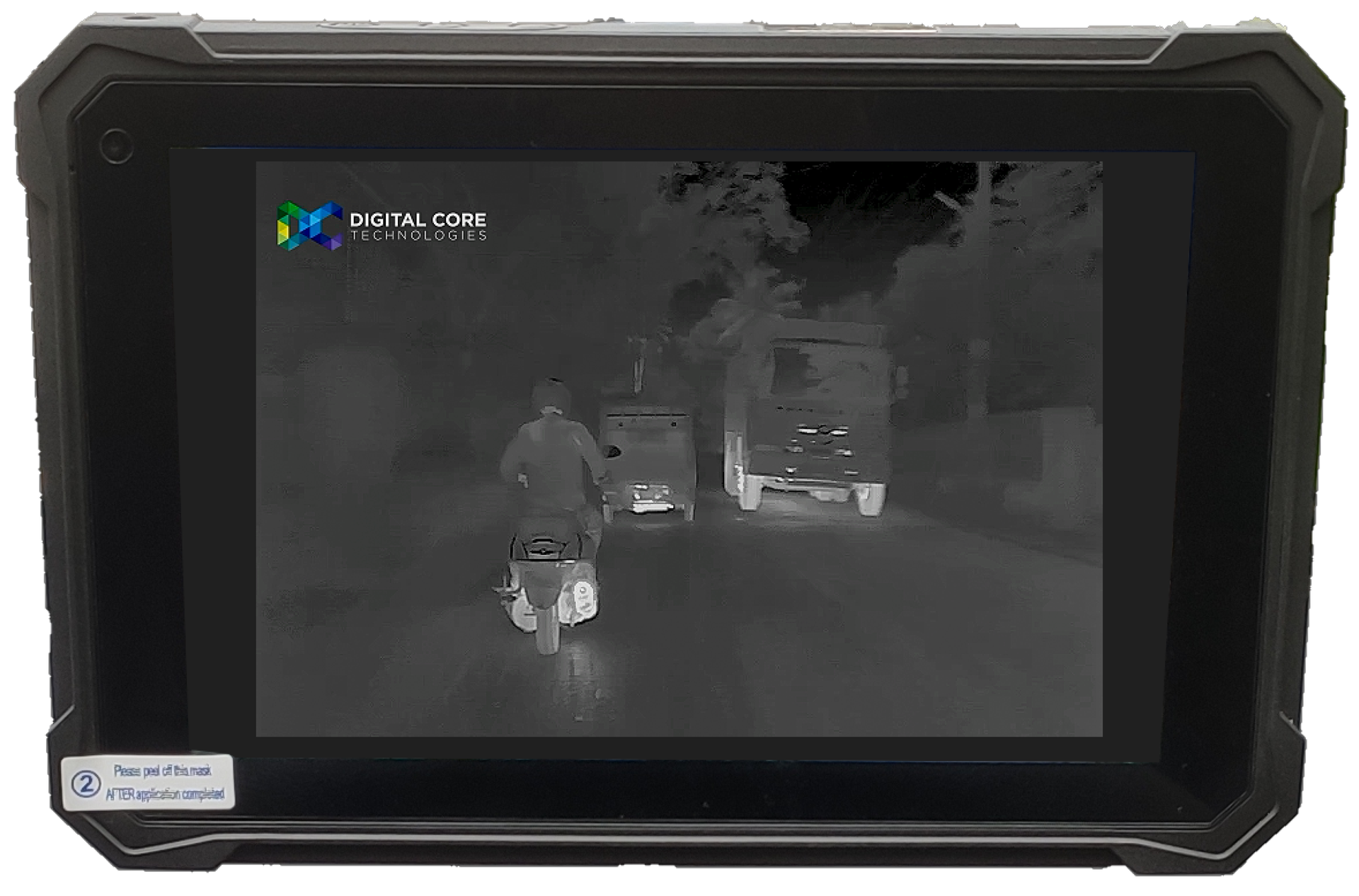

| DRIVER DISPLAY SCREEN | 8-inch 1920x1200 IPS screen |
