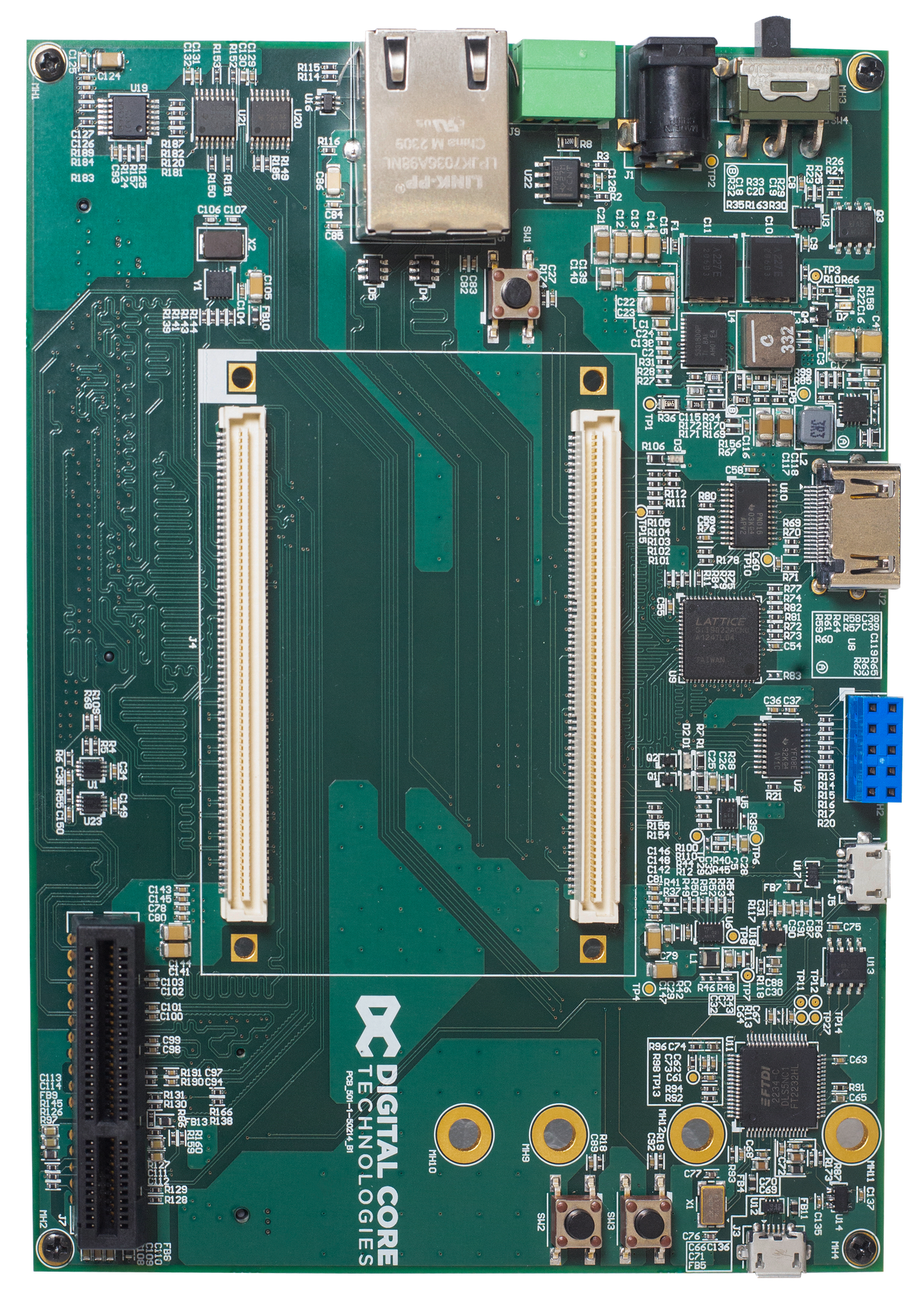

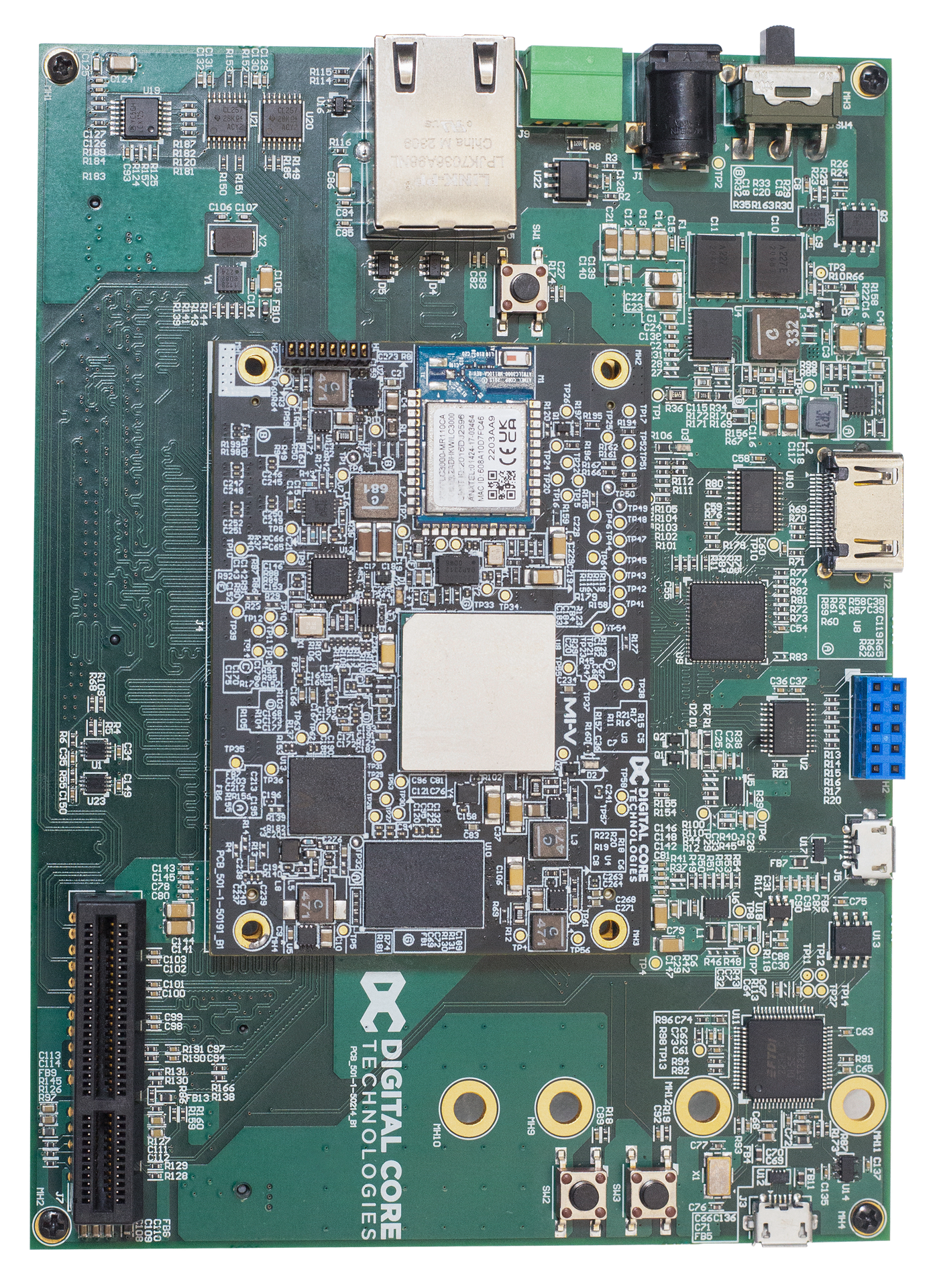

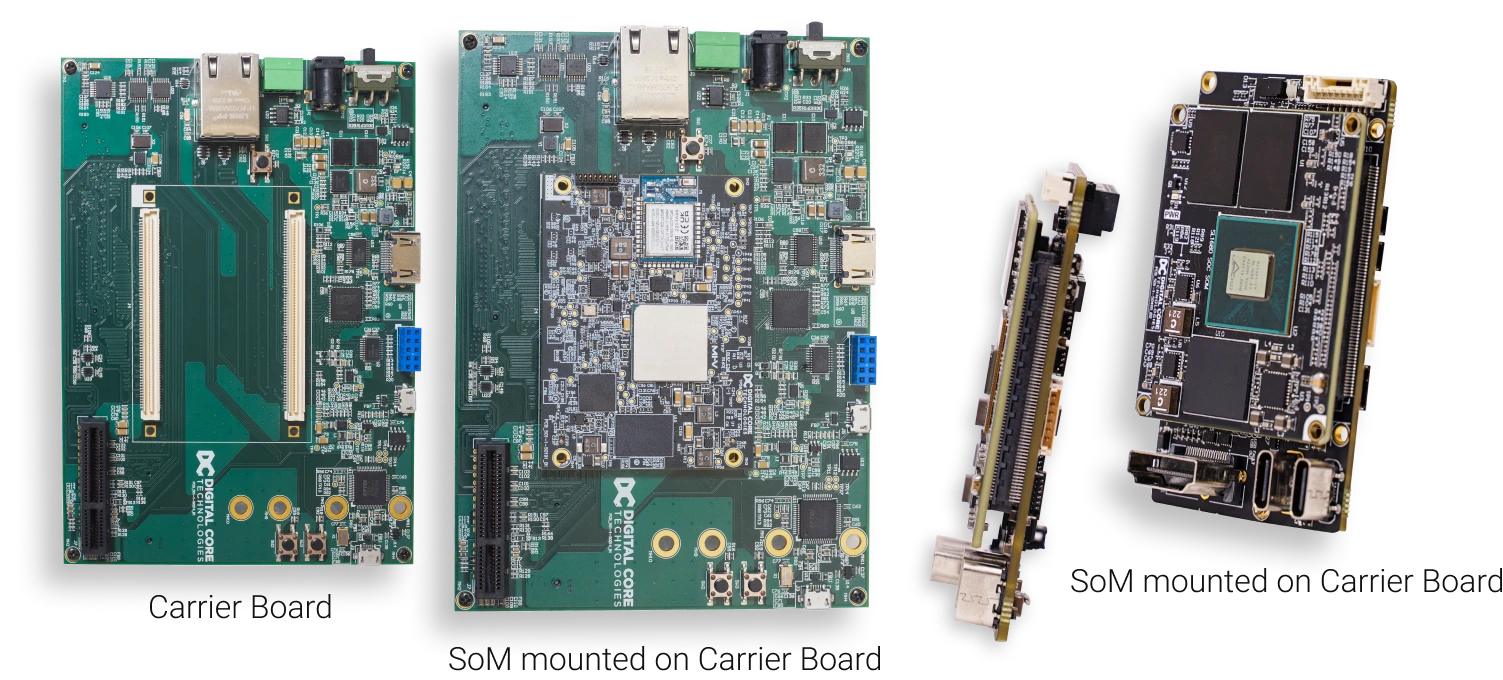

CARRIER BOARD
CUSTOMIZABLE EMBEDDED INTERFACE BOARD
TAILORED I/O
AND CONNECTIVITY PLATFORM FOR APPLICATION-SPECIFIC REQUIREMENTS
On-Board Interfaces
: x1 Gigabit ethernet on RG45
: x1 USB 2.0
: x1 PCIe Slot
: M.2 Key B Slot
: x1 HDMI port
: LPC FMC Connector with Fabric GIOS ports
SPECIFICATIONS
| DIMENSIONS | 150X110 mm | |
| ETHERNET | 1Gbps x 1 | |
| PCIe | PCIe Gen 2 x4 | |
| M.2 KEY B | PCIe M.2 Interface (PCIe x1) - Selectable | |
| USB 2.0 | x1 | |
| I2C | I2C x1 | |
| HDMI | HDMI 1.4a x1 | |
| FMC | FMC LPC | |
| CAN | x1 | |
| GPIO | General Purpose IO x4 | |
| SWITCH | User Defined Switches x2 | |
| DEBUG | USB to UART debug interface | |
| PROGRAMMING | JTAG interface in SoM | |
| INPUT VOLTAGE | 12V DC |
