CAMP

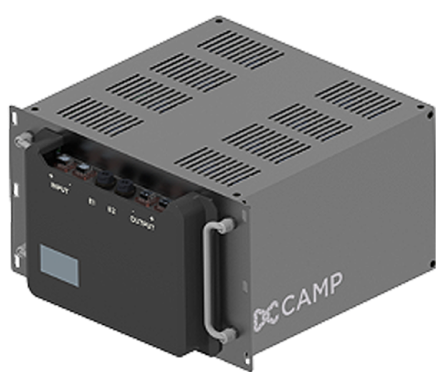

MANAGED SUPER CAPACITOR BANK
actively balanced ultra-capacitor system
for RELIABLE ENERGY STORAGE AND POWER DELIVERY
Network Connectivity
Network connectivity for remote monitoring and management and support for network integration/UI development.
CONFIGURABLE & SCALABLE
Modular design with configurable capacitance, voltage & energy. Scalable design with option to cascade modules in series or parallel to build bank with higher voltage (upto 1.2KV)/current/energy.
CELL MONITORING
All cells are monitored for temperature & cell voltage; and cell level voltage is balanced continuously.
Operating Range
Operating range of -20°C to +55°C
SPECIFICATIONS
| BANK VOLTAGE (CHARGER/LOAD) | from 24V to 1200V | |
| BANK CAPACITANCE (F) | Wide range of options based on use-case | |
| MAX OUTPUT CURRENT | Limited by rating of capacitors used | |
| RATED MAXIMUM LOADING | Depending upon energy storage | |
| OPERATING TEMPERATURE | -20°C to +55°C | |
| STORAGE TEMPERATURE | -40°C to +70°C | |
| CELL BALANCING | Active balancing with simultaneous sampling of all cells | |
| LOCAL DISPLAY | Status LED and small LCD panel for abstract data | |
| ENCLOSURE (CUSTOMIZABLE) | Rack-mounted design/Customer form-factor as required | |
| CONNECTORS | Rugged vibration-safe connectors for input, output and Ethernet | |
| CONNECTIVITY | Ethernet port with MQTT based secure IoT stack. Network APIs for monitoring voltage, current temperature and operating status. |
