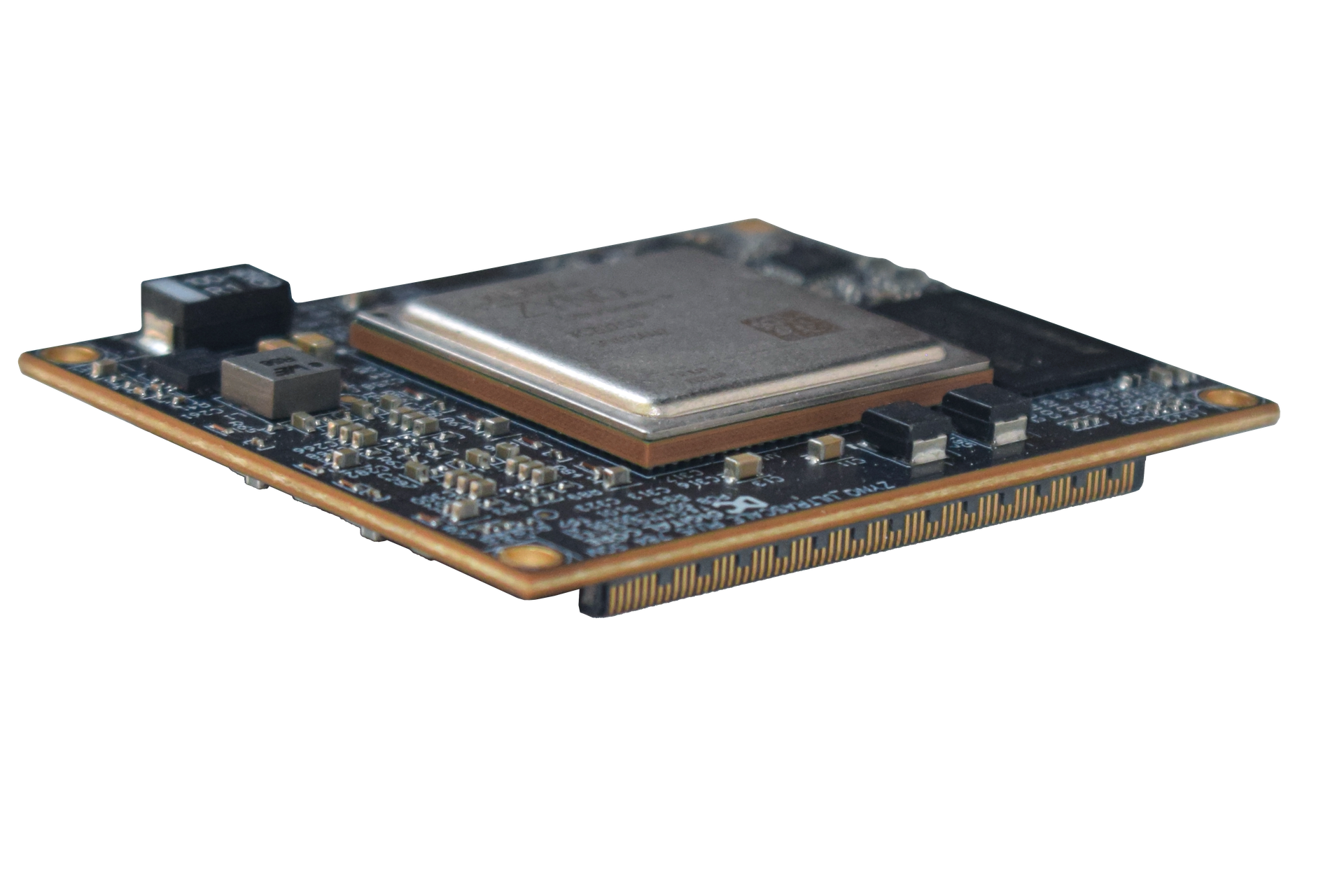

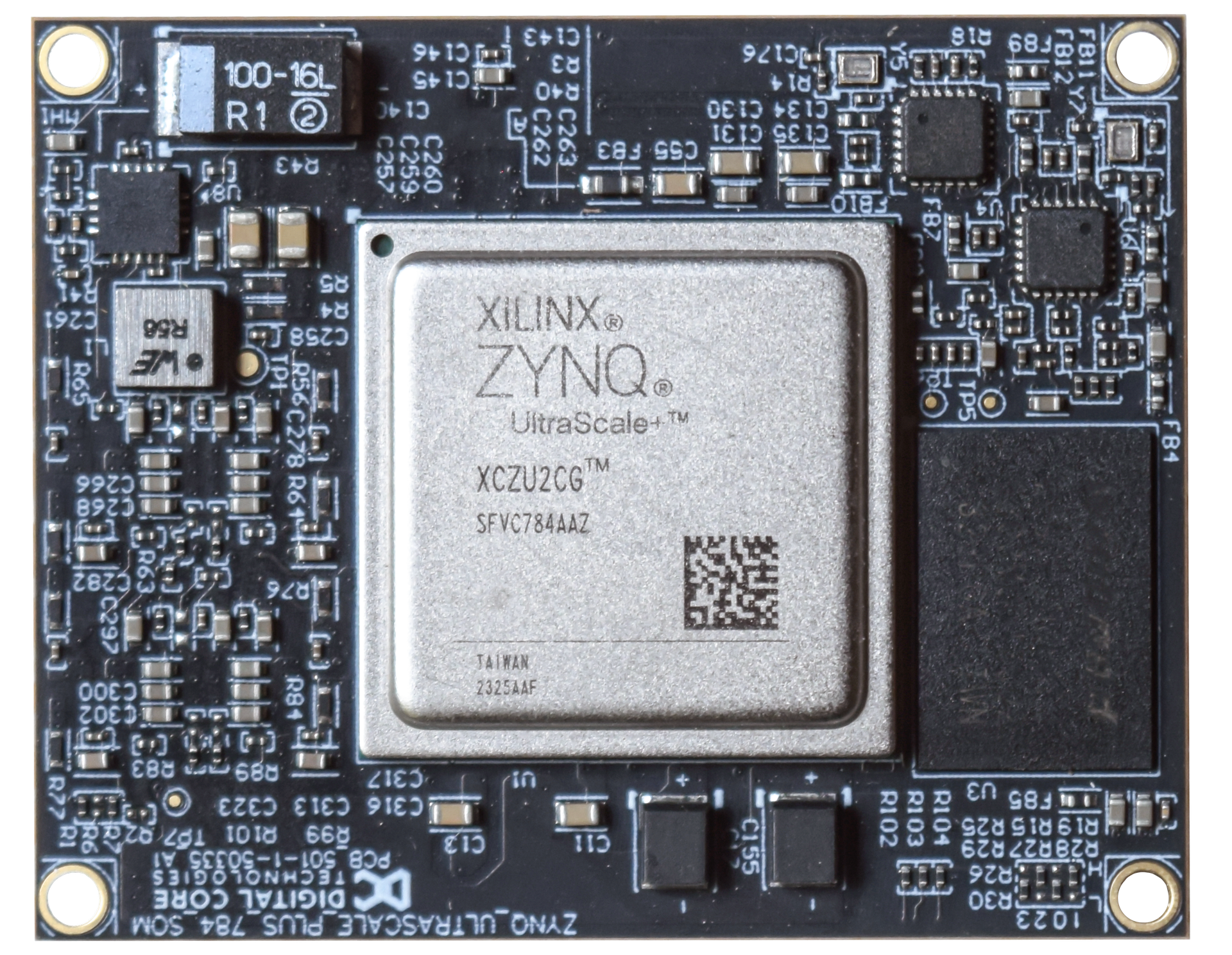

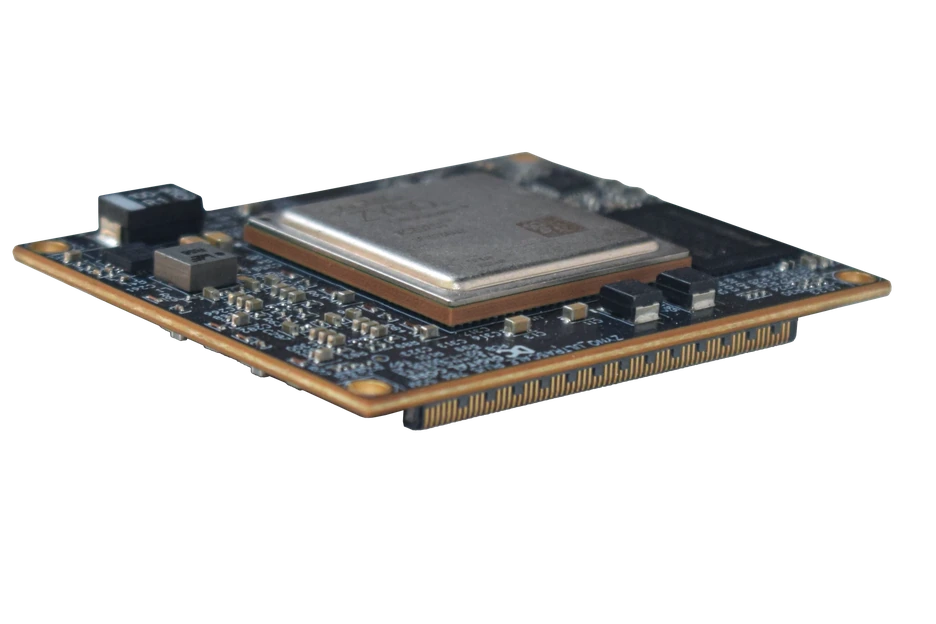

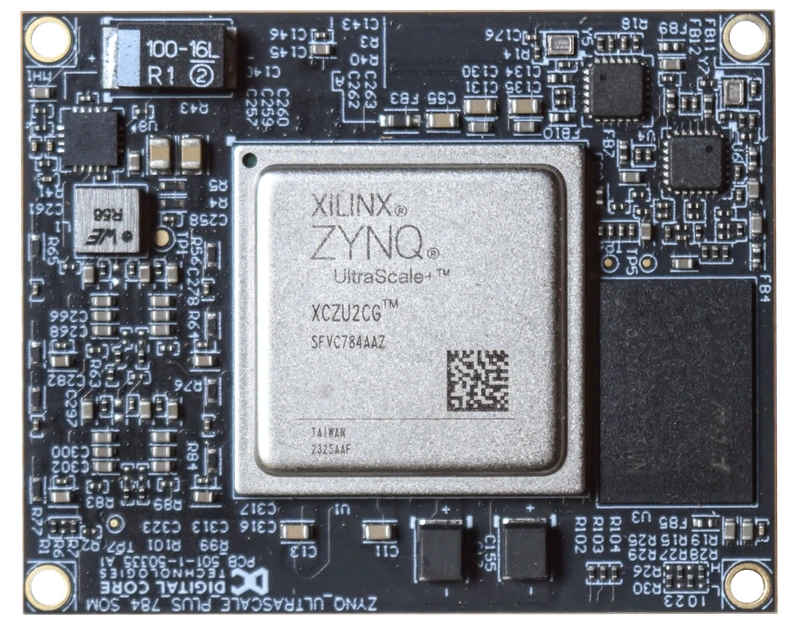

SoM : Xilinx Zynq™ UltraScale+™
Processing sub-system (SoC) on
a modular PCB with MULTI-CORE Application Processor & HIGH-END FPGA FABRIC
On-Chip Resources
CPU Cores
: x4 u54 RV64 (IMAFDC), 625MHz, 40 bit MMU
: x1 E51 RV64 (IMAC) 625 MHz, M&U modes
: Crypto Processor, Secure boot, Anti Tamper
: Linux SDK
FPGA Fabric
: 254K Logic Elements
: 784 Math Blocks
: 12.5 Gbps SERDES (x4 lanes) with PCIe Gen2
On-board resources
Memory
: 2GB LPDDR4
: 8 GB eMMC
: 128MB QSPI Flash
SPECIFICATIONS
CMSBC1_ZQ3EG7_A2
| SUPPORTED SocS/FPGAs | XC7Z020-2CLG400I | |
| On-CHIP CPU CORE | Quad 64bit ARM Cortex | |
| RAM | 2GB LPDDR4 (Expandable) | |
| Flash (expandable) | 32GB | |
| SPI Flash | NA | |
| Wifi/bt | No | |
| gbe ethernet | x1 (RGMII Interface to B2B Connector) | |
| USB 2.0/3.0 | x1(2.0)/ X1(3.0) | |
| PCIe | x4 | |
| Dimensions | 40 x 50 mm | |
| POWER | 5V DC |
** Design compatible for the SoC series in the same package and family like 2CG, 3CG, 3EG, 4EG
