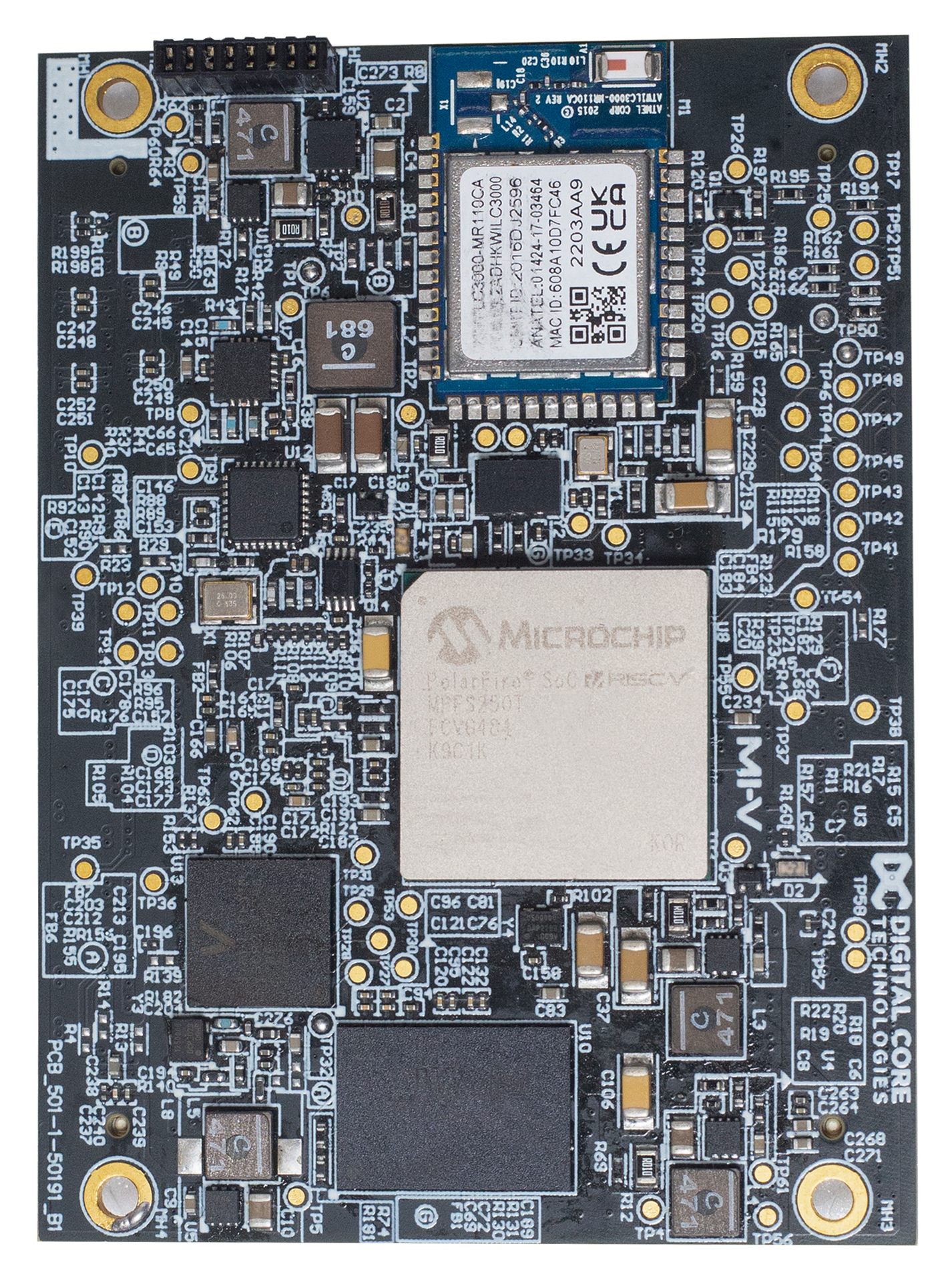

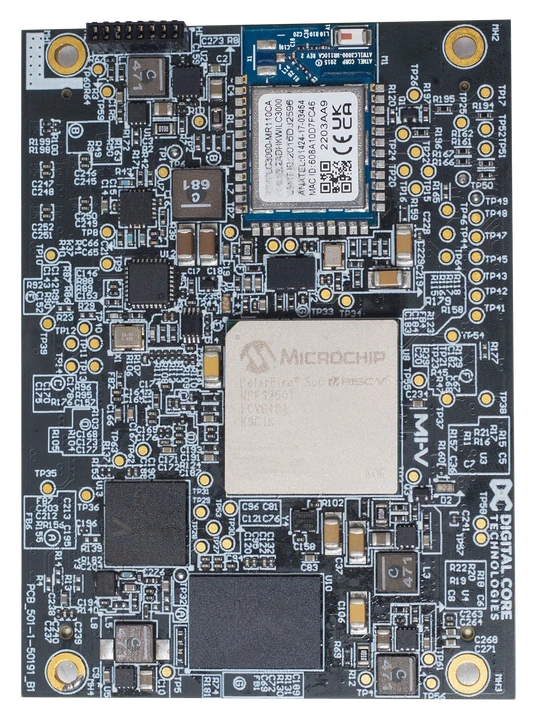

SoM : Microchip PolarFire® SoC FPGA
SoM Based on The
World's First Multi-Core RISC-V Based PolarFire® SoC FPGA
On-Chip Resources
CPU Cores
: x4 u54 RV64 (IMAFDC), 625MHz, 40 bit MMU
: x1 E51 RV64 (IMAC) 625 MHz, M&U modes
: Crypto Processor, Secure boot, Anti Tamper
: Linux SDK
FPGA Fabric
: 254K Logic Elements
: 784 Math Blocks
: 12.5 Gbps SERDES (x4 lanes) with PCIe Gen2
On-board resources
Memory
: 2GB LPDDR4
: 8 GB eMMC
: 128MB QSPI Flash
SPECIFICATIONS
CMCGA1_G1F1_XX
| SUPPORTED SocS/FPGAs | MPFS250T-FCVG484 ** | |
| On-CHIP CPU CORE | Quad 64bit RISCV | |
| RAM | 2GB LPDDR4 (Expandable) | |
| Flash (expandable) | 8GB | |
| SPI Flash | 128MB | |
| wifi/bt | on board | |
| Gbe ethernet | x1 (Onboard PHY) | |
| USB 2.0/3.0 | x1(2.0) | |
| PCIe | x4 | |
| Dimensions | 55 x 75 mm | |
| POWER | 5V DC |
CMSVC1_PFXXX4_A2
| SUPPORTED SocS/FPGAs | MPFS250T-FCVG784 ** | |
| On-CHIP CPU CORE | Quad 64bit RISCV | |
| RAM | 2GB LPDDR4 (Expandable) | |
| Flash (expandable) | 8GB | |
| SPI Flash | 128 MB | |
| wifi/bt | No | |
| Gbe ethernet | x1 (SGMII Interface to B2B Connector) | |
| USB 2.0/3.0 | x1(2.0) | |
| PCIe | x4 | |
| Dimensions | 40 x 50 mm | |
| POWER | 5V DC |
** Design compatible for the SoC series in the same package and family like MPFS025T, MPFS095T, MPFS160T
