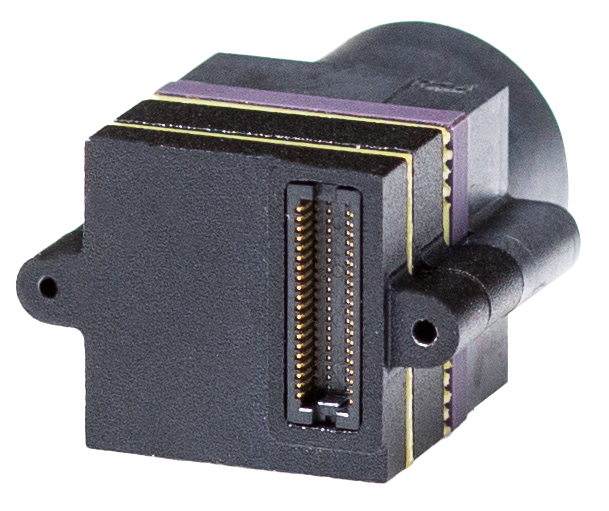

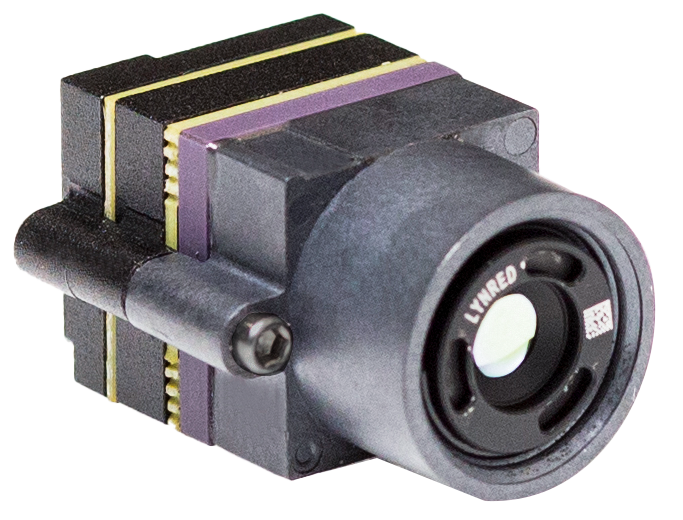

TRIMER™ L3T_LUB : (320x240 | 12μM)
customizable, off the shelf, QVGA
resolution thermal imaging core with built in ISP
Trimer™ is a trademark of Digital Core Technologies Pvt Ltd.
API Support
API support for host interface and configuration from Camera Application SW.
THERMVIEW
Windows/Linux based demo application (ThermView) available for demonstration, validation & API reference.
Host Adapter Boards
USB adapter PCB available to Connect as UVC (camera) class device to compatible host.
Custom adapter board
Custom adapter board can be provided for different video output interfaces.
SPECIFICATIONS
| RESOLUTION | 320 x 240 | |
| DETECTOR | Lynred ATI 320 | |
| PIXEL PITCH | 12μM | |
| PCB DIMENSION | 16 mm x 16 mm x 27.1 mm (with lens) | |
| WEIGHT (w/o lens) | 16gm | |
| VIDEO OUT | 8-bit CMOS (BT 656) |
| VIDEO FORMAT | YCbCr 4:2:2 (customisable) | |
| FRAME RATE | 25 / 30 / 50 / 60 fps | |
| VIDEO ADAPTER BOARD | USB 3.0/ HD-SDI/ MIPI/ Ethernet/ Customisable | |
| CONTROL INTERFACE | USB/SPI | |
| LENS MOUNT | Fixed lens (5.3mm f/1.3) | |
| POWER INPUT | 5V DC / <2W | |
| VIDEO PLAYER | ThermView with configuration option/ UVC class player | |
| HOST API | Available for Linux/Windows | |
| Time to image | <3 sec | |
| OPERATING TEMP. | -40C to 60C | |
| VIBRATION & SHOCK | Tested as per MIL STD 810G/ JSS 55555 compliance |
