NINOX-MTG
Multi-Spectrum Thermography
Camera suitable for Industrial Thermography applications
RUGGED, LOW-POWER

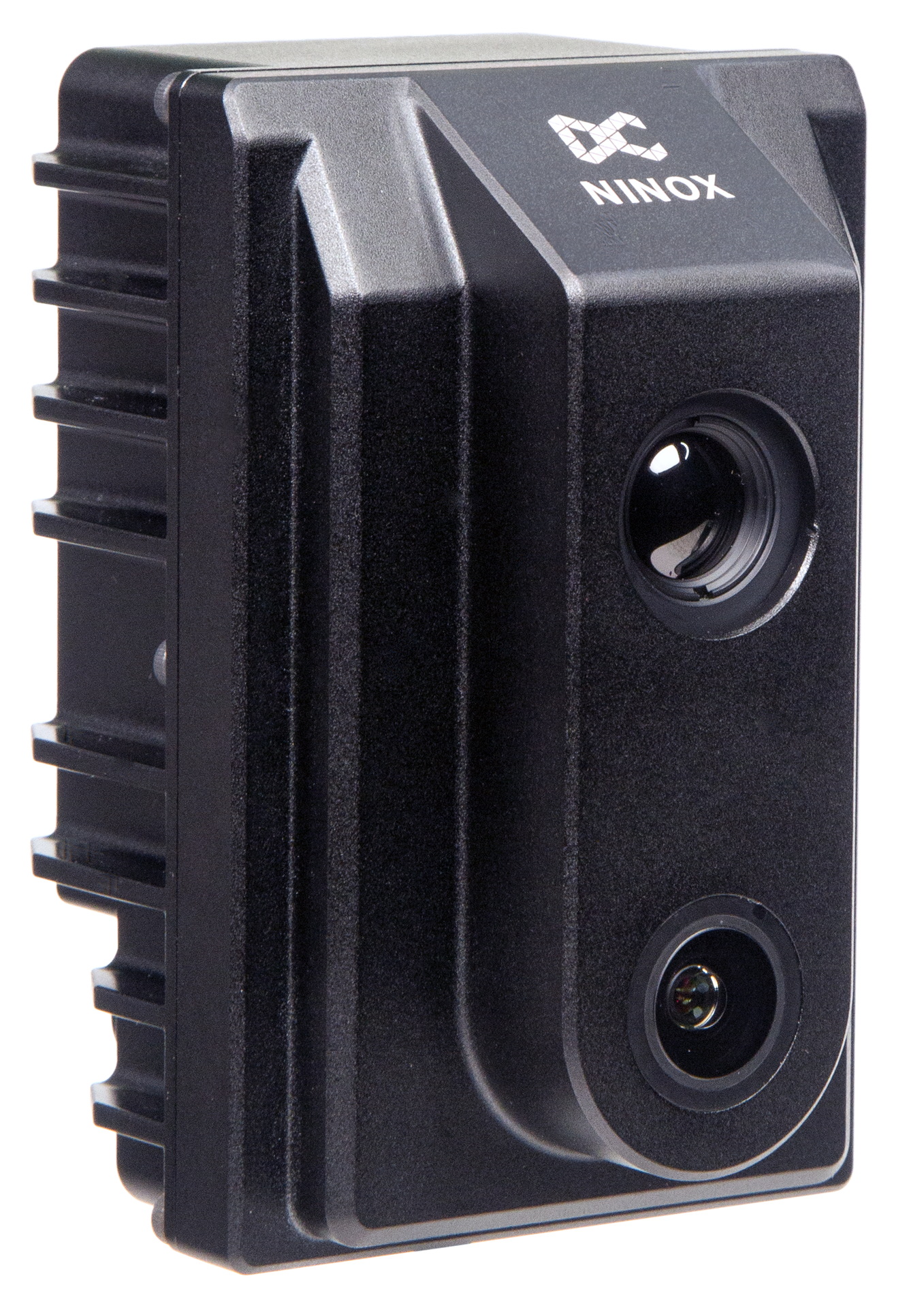

Ninox MTG is a rugged low power Multispectrum (Thermal IR and Visible light) camera with video over Ethernet as IP Stream. Based on Lynred ATTO sensor with 12μM pixel. IP65 Rated
THERMVIEW
Windows/Linux based demo application (ThermView) available for demonstration, validation & API reference.
Built-In ISP
Built-in ISP with Bad-pixel correction, NUC, Tone-mapping, DDE, CLAHE etc.
Operating Range
Operating range of 0°C to +50°C
SPECIFICATIONS
| MECH. DIMENSIONS | 75X75X120 mm | |
| POWER | PoE (802.3af) | |
| POWER CONSUMPTION | Less than 4 Watts | |
| RAM | 4GB LPDDR4 |
THERMAL IR SPECTRUM
| SPECTRAL RESPONSE | LWIR (8 - 14 μm) | |
| MAX RESOLUTION | 640 (H) X 480 (W) | |
| PIXEL PITCH | 12μm / 17μm | |
| FRAME RATE | 25 fps | |
| NETD | <40mK | |
| LENS FOV | 75° (Customizable) | |
| Focus Range | Fixed, 1M to infinity (Specific to lens) | |
| Temperature Measurement | Higher of +/- 2° C or +/- 2% |
VISIBLE SPECTRUM
| SPECTRAL RESPONSE | 380 to 700 nm | |
| MAX RESOLUTION | 1920 X 1080 | |
| FRAME RATE | 25 FPS | |
| LENS FOV | 106°(D) 92.6°(H) 48.6°(V) (Customizable) |
